Complete

Gonatidae Hoyle, 1886

Tsunemi Kubodera, F. G. Hochberg, Richard E. Young, and Michael Vecchione
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
This family contains the following four genera with 19 species.
taxon links [up-->]Berryteuthis [up-->]Eogonatus [up-->]Gonatus [up-->]Gonatopsis [down<--]Oegopsida Interpreting the tree
close box

This tree diagram shows the relationships between several groups of organisms.

The root of the current tree connects the organisms featured in this tree to their containing group and the rest of the Tree of Life. The basal branching point in the tree represents the ancestor of the other groups in the tree. This ancestor diversified over time into several descendent subgroups, which are represented as internal nodes and terminal taxa to the right.

example of a tree diagram

You can click on the root to travel down the Tree of Life all the way to the root of all Life, and you can click on the names of descendent subgroups to travel up the Tree of Life all the way to individual species.

For more information on ToL tree formatting, please see Interpreting the Tree or Classification. To learn more about phylogenetic trees, please visit our Phylogenetic Biology pages.

close box
Containing group: Oegopsida

Introduction

Gonatids are mostly muscular squids of moderate size but are unusual in having the armature on the arms in four, rather than two, series (occasionally more than four series near the arm tips) (see title photographs). The two medial series are usually hooks. Often the tentacular club has one very large centrally located hook. Species of the genus Gonatopsis are unusual in that they lack tentacles which are lost in the early juvenile stage.

Brief diagnosis:

An oegopsid ...

Characteristics

  1. Arms
    1. Arms with quadraserial armature except at arm tips in some species where sucker series increases.
    2. Arms I-III with hooks in two medial series except in Berryteuthis anonychus; the latter with hooks only in females and only at bases of arms I-III.
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Oral view of two arms of Gonatus steenstrupi with large hooks in the medial two series (white arrows) and a series of small suckers on each arm margin (black arrows). Transmitted-light photograph by M. Vecchione aboard the R/V G. O. SARS, MarEco cruise to the central North Atlantic.

  2. Tentacles
    1. Tentacular clubs with numerous irregular series of suckers; additional hooks in some genera.
    2. Tentacular clubs with unique locking-apparatus in Gonatus and Eogonatus consisting of a series of elongated ridges with medial suckers and knobs.
      Click on an image to view larger version & data in a new window
      Click on an image to view larger version & data in a new window

      Figure. Oral view of the proximal region of the club of G. steenstrupi. Arrow points to one ridge of the locking-apparatus. Transmitted-light photograph by M. Vecchione aboard the R/V G. O.SARS, MarEco cruise to the central North Atlantic.

  3. Buccal crown
    1. Buccal-crown connectives attach to ventral margins of arms IV.

  4. Funnel
    1. Funnel locking-apparatus with straight groove.

  5. Photophores
    1. Photophores absent except in G. pyros (ocular photophores).

  6. Gladius
    1. Gladius with primary conus.

Comments

The following table compares characteristics of subadults for the genera of Gonatidae.

Genus / Character  Tentacles present  Hooks present on clubs  Club locking-apparatus
Berryteuthis   Yes  No Single series of suckers and knobs along entire dorsal margin of manus.
Eogonatus   Yes  No Short series of suckers, knobs and  elongate ridges at base of manus.
Gonatopsis   No  NA NA
Gonatus   Yes  Yes Short series of suckers, knobs and  elongate ridges at base of manus.

Discussion of Phylogenetic Relationships

There have been several recent attempts to unravel the phylogeny of the Gonatidae. Nesis (1997) relied on similarity of morphology and, apparently, results of protein electrophoresis by Katugin (1993 and 1995) to derive the following relationships:

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

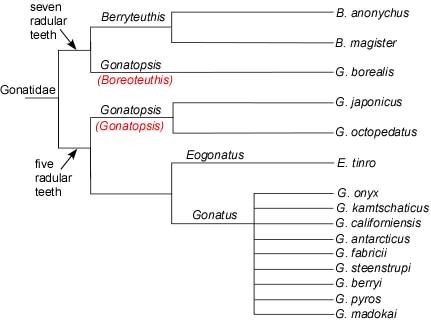

Figure. Phylogeny of the Gonatidae. Chart modified from Nesis (1997). Subgenera are in red. Nesis included only species that were well established as valid species. Nesis considered Eogonatus to be a subgenus of Gonatus.

Clearly if this phylogeny is correct then Gonatopsis is polyphyletic. More recently Katugin (2004) has reassessed the phylogeny of the gonatidae using electrophoretic analysis of allozymes. His results are seen below.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Phylogenetic tree of the Gonatidae. Chart modified from Katugin (2004). Numbers represent genetic distance based on protein electrophoresis. Branch lengths are not drawn proportional to genetic distance.

In the paper Katugin proposes a new classification of the Gonatidae with two subfamilies (Berryteuthinae and Gonatinae) based on the radula. Within the Berryteuthinae he includes Berryteuthis (B. magister), Boreoteuthis (for Gonatopsis borealis; he elevates the subgenus Boreoteuthis to generic level) and a new genus Okutania for Berryteuthis anonychus. In the Gonatinae he includes Gonatus (including Eogonatus) and the remaining species of Gonatopsis. Katugin's phylogeny based on allozymes is similar to that of Nesis (1997) however the allozyme data shows the Gonatinae nested within the Berryteuthinae.

Recent molecular data analyzed using parsimony from 12S rRNA, 16S rRNA, and COI genes (Lindgren et al. 2005) offer a somewhat different phylogeny of the family but without good bootstrap support for most nodes. This data suggests that the Gonatus is paraphyletic. Gonatopsis borealis groups more closely with Berryteuthis than other species of Gonatopsis as suggested by both Nesis (1997) and Katugin (2004).

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Phylogenetic tree of the Gonatidae. Chart simplified from Lindgren et al. (2005) by collapsing nodes with bootstrap support of 50 or less, and eliminating uncertain identifications. Numbers represent bootstrap support for relationships derived from combined molecular analyses. Numberered G. middendorffi represent different morphological types.

Because of the uncertainty in gonatid phylogeny, we retain here the standard classification for the family.

Nomenclature

A list of all nominal genera and species in the Gonatidae can be found here. The list includes the current status and type species of all genera, and the current status, type repository and type locality of all species and all pertinent references.

Habitat and distribution

Gonatids are pelagic squids that occur from the surface to over 1000 m depth. Some species undergo extensive diurnal (diel) vertical migrations, ascending at night and descending during the day. A few species are associated with the ocean floor over the continental slope. Gonatids occur in high latitudes of both hemispheres. One species lives in antarctic waters, two in the North Atlantic and 16 in the high North Pacific where they are among the most abundant oceanic squids.

Life History

Historically the paralarvae of gonatid squids have been virtually impossible to identify. Recent studies, however, found that the dorsal-head chromatophores can allow specific identification of the smallest paralarvae of at least six species in the North Pacific (Jorgensen, 2006). Jorgensen (2006) recognizes two basic patterns, Type 1 and Type 2, with species-specific variations in each.

Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window

Figure. Dorsal view of the two classes of head chromatophores presently recognized in gonatids. Type I has three tear-shaped chromatophores on each side that come to a point over each eye. Type II has three transverse rows of chromatophores with one chromatophore in the anterior row, two in the middle row and three in the posterior row. Drawings from Jorgensen (2007).

References

Jorgensen, E. M. 2007. Identification, distribution and relative abundance of paralarval gonatid squids (Cephalopoda: Oegopsida: Gonatidae)from the Gulf of Alaska, 2001-2003. Journ. Molluscan Studies, 73: 155-165.

Katugin, O. N. 1993. Study of relationships between different species of squid, family Gonatidae, by protein electrophoresis. In: Biology and Rational Use of Hydrobionts. Their role in ecosystems. Abstracts of communications of the TINRO Young Scientisit Conference, Vladivostok," p. 14-15. In Russian.

Katugin, O. N. 1995. Morphology, genetic difference, and evolution of Berryteuthis magister, Berriteuthis anonychus, and Gonatopsis borealis (Cephalopoda: Oegopsida). In: "Unitas Malacologica. 12th International Malacological Congress. Vigo, Spain. Abstracts." p. 312-313.

Katugin, O. N. 2004. Squids of the family Gonatidae from the North Pacific Ocean and their genetic differentiation: controversial issues in the systematics and phylogeny.Ruthenica 14(1): 73-87. In Russian with English abstract.

Lindgren, A. R., O. N. Katugin, E. Amezquita and M. K. Nishiguchi. 2005. Evolutionary relationships among squids of the family Gonatidae (Mollusca: Cephalopoda) inferred from three mitochondrial loci. Molecular Phylogenetics and Evolution 36(1):101-111.

Nesis, K. N. 1982. Abridged dey to the cephalopod mollusks of the world's ocean. 385+ii pp. Light and Food Industry Publishing House, Moscow. (In Russian.). Translated into English by B. S. Levitov, ed. by L. A. Burgess (1987), Cephalopods of the world. T. F. H. Publications, Neptune City, NJ, 351pp.

Nesis, K. N. 1997. Gonatid squids in the Subarctic North Pacific: Ecology, biogeography, niche diversity and role in the ecosystem. Advances in Marine Biology. Academic Press, New York, p. 243-324.

Okutani, T. and M. R. Clarke. 1992. Family Gonatidae Hoyle, 1886. P. 139-156. In: Sweeney, M. J., C. F. E. Roper, K. M. Mangold, M. R. Clarke and S. v. Boletzky (Eds.). "Larval" and juvenile cephalopods: A manual for their identification. Smithson. Contr. Zool. No. 513.

Young, R. E. 1972. The systematics and areal distribution of pelagic cephalopods from the seas off Southern California. Smithson. Contr. Zool., 97: 1-159.

Title Illustrations
Click on an image to view larger version & data in a new window
Click on an image to view larger version & data in a new window
Scientific Name Gonatopsis borealis, Gonatus berryi
Location Northeast Pacific off Oregon,U.S.A., at 46.16N, 124.79W; off Monterey at 36.7N, 122.05W
Comments In situ photographs of G. borealis taken at a depth of 701 m (daytime); G. berryi taken at a depth of 726 m
Acknowledgements Image courtesy of the Monterey Bay Aquarium Research Institute (MBARI). You must obtain permission from MBARI to use this photo; please contact pressroom@mbari.org for further information.
Specimen Condition Live Specimen
Identified By R. E. Young
View Side; oral
Size Unknown; 185 mm ML
Copyright © 2013 MBARI
